Outdoor LED Display
Built for Whatever the Weather Throws at It
Quanstar's Outdoor LED Display modules bring full-color, high-brightness visuals to any exterior space - IP65-rated, automatically brightness-adjusting, and engineered to keep your message visible in direct sun or heavy rain.
- IP65 Weatherproof Rating: Engineered for continuous outdoor exposure in any climate.
- Automatic Brightness Regulation: Adjusts to ambient light for legibility day and night.
- Up to 6,000 cd/m² Brightness: Stays visible in direct sunlight.
- 110% Wide Color Gamut: True, vibrant color reproduction outdoors.
- Fast, Modular Installation: Rear-maintenance design simplifies after-sales service.
Description
Display Solutions With No Limits
Outdoor advertising and signage only work if the screen survives the environment it’s placed in. Quanstar’s Outdoor LED Display modules are IP65-rated and built with premium raw materials.
Available from P2.5mm to P10mm pixel pitch, these modules deliver up to 6,000 cd/m² brightness with automatic regulation that adjusts to ambient light — bright enough to stay legible in direct sunlight and dimmed automatically after dark so it isn’t overpowering. A 3,840Hz refresh rate keeps fast-motion content crisp on column screens, wall installations, and light-pole displays.
Beyond raw brightness, Quanstar’s outdoor modules deliver 110% wide color gamut and 14-bit grayscale for true-to-life color reproduction, plus a wide viewing angle that keeps the image consistent whether it’s viewed head-on from the street or at an angle from a passing vehicle.
From column advertising and light-pole screens to full building facades and bus station displays, Quanstar’s Outdoor LED Display is the display solution built to adapt to your structure.
Extreme Display, Restored Real-World Color
3,840Hz Refresh, 14-Bit Grayscale, 110% Color Gamut
Fast motion stays sharp with a 3,840Hz refresh rate, while 14-bit grayscale delivers smoother color transitions. A 110% wide color gamut means outdoor content looks as vivid and true-to-life as what you’d see on an indoor display.
Automatic Light Regulation
Bright by Day, Balanced by Night
Quanstar’s outdoor modules automatically adjust brightness based on ambient light intensity – no manual scheduling required. The result is a display that’s always legible without ever overwhelming its surroundings after dark.
Engineered for Every Environment

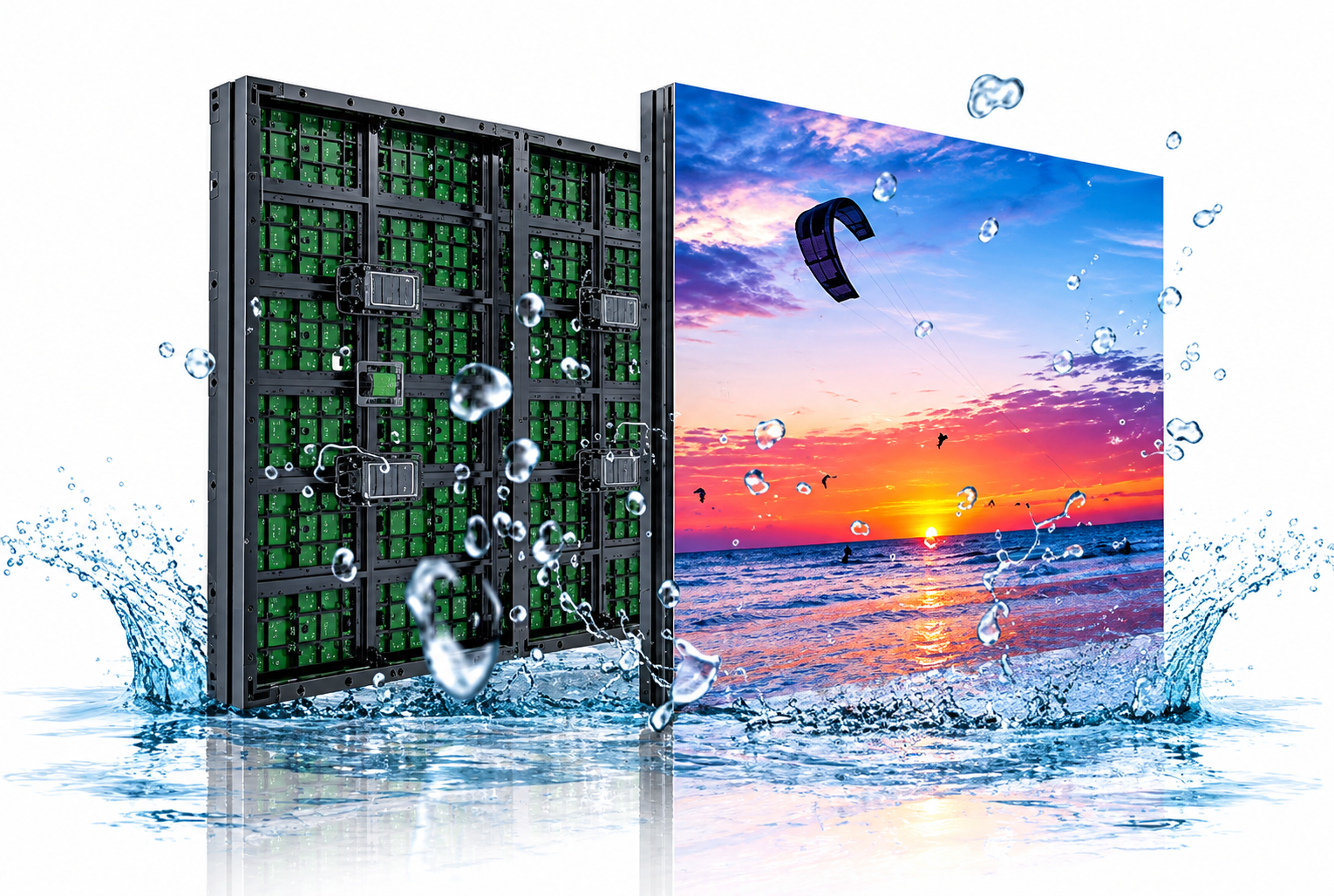

Rated IP65. Built to Handle Storms.
Premium raw materials, standardized production, and quality control at every stage of manufacturing mean Quanstar’s outdoor LED modules keep performing through wind, rain, and heat.
Additional information
| Pixel Pitch | 2.5mm (P2.5), 3.07mm (P3.0), 4mm (P4), 5mm (P5), 6.6mm (P6), 8mm (P8), 10mm (P10) |
|---|---|
| Module Resolution (px) | 128×64 (P2.5), 104×52 (P3.0), 80×40 (P4), 64×32 (P5), 48×24 (P6), 40×20 (P8), 32×16 (P10) |
| Module Size | 320*160mm |
| Lamp Type (SMD) | 1515 (P2.5 and P3.0), 1921 (P4 and P5), 3535 (P6, P8 and P10) |
| Module Weight | 0.5kg (P2.5), 0.41kg (P3.0), 0.5kg (P4), 0.48kg (P5, P6, P8 and P10) |
| Cabinet Size | 960*960*90mm |
| Cabinet Resolution (px) | 384×384 (P2.5), 312×312 (P3.0), 240×240 (P4), 192×192 (P5), 144×144 (P6), 120×120 (P8), 96×96 (P10) |
| Cabinet Weight | 25kg |
| Maintenance | Rear maintenance |
| Waterproofing Class | IP65 |
| Brightness (cd/m²) | ≤4000 (P2.5), ≤4500 (P3.0 and P4), ≤5000 (P5, P6, P8 and P10) |
| Horizontal Viewing Angle | ≤160° |
| Vertical Viewing Angle | ≥100° |
| Colour Temperature (K) | 11000-14000 |
| Visible Distance | 3.8m (P2.5), 4.5m (P3.0), 6m (P4), 7.5m (P5), 8.5m (P6), 10m (P8), 12m (P10) |
| Operating Voltage | 4.5V |
| Interface | HUB75 |
| Refresh Rate | 1920/3840/7680 Hz |
| Grey Level | 12~14 Bit |
| Max Power (W/m²) | ≤1000 |
| Average Power (W/m²) | ≤300 |
| Humidity | 10~90%RH |
| Operating Temperature | -20°C~+50°C |
| Life Span | 100000h |
