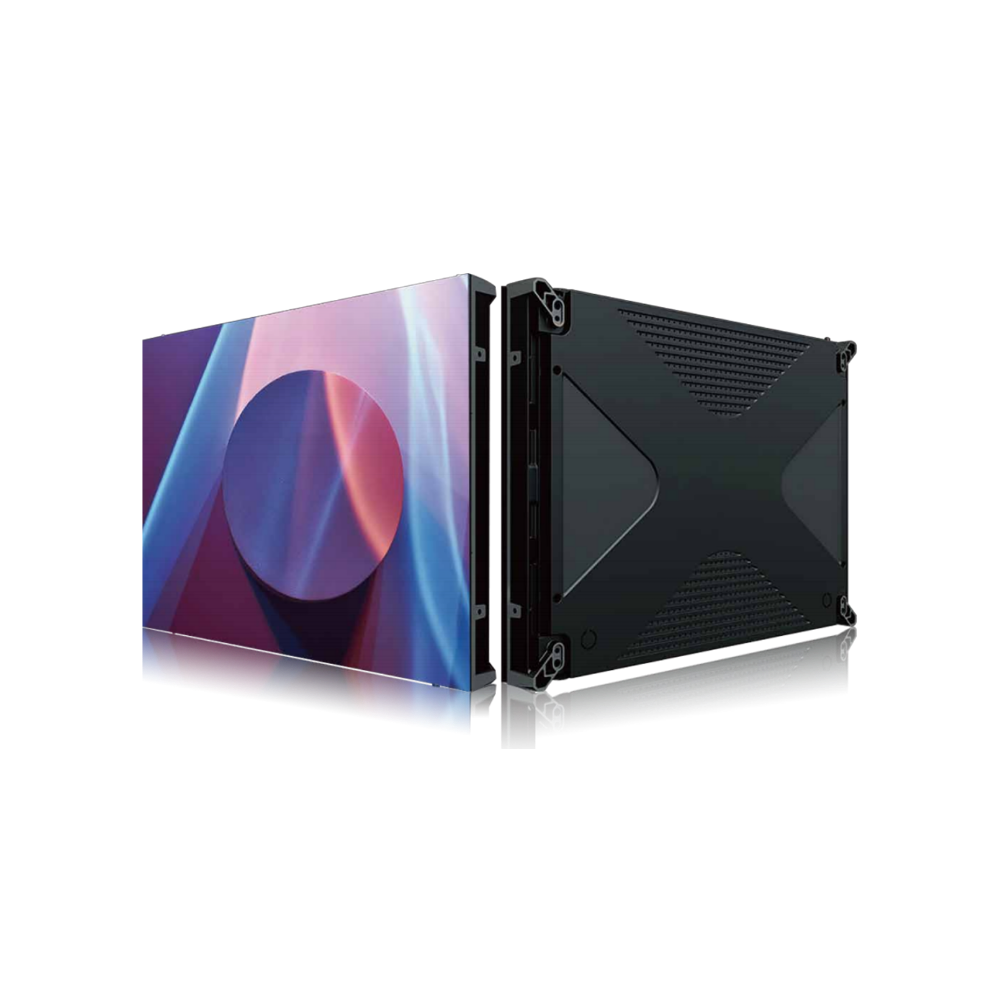

Indoor LED Display
Seamless Clarity, Wall to Wall
Quanstar's Indoor LED Display modules deliver a single, unbroken image at any size — from a boardroom accent wall to a full-scale lobby installation — with fine pixel pitches down to P1.25mm and commercial-grade reliability built for 24/7 operation.
- Fine Pixel Pitch Options: From P1.25mm to P4mm, matched to your viewing distance and resolution needs.
- Seamless 4K Stacking: Individual 320×160 modules combine into 4K or fully custom resolutions with no visible seams.
- 160° Wide Viewing Angle: Consistent color and brightness from front row to far corner - no dead zones.
- 2-Second Module Replacement: Front-maintenance design keeps downtime to a minimum.
- Commercial-Grade 24/7 Reliability: Rated for 100,000 hours of continuous operation.
Description
Every Pixel, Perfectly Placed
Quanstar’s Indoor LED Display is built on a simple idea: a display wall should look like one screen, not many panels stitched together. High-precision cabinet structures keep pixel pitch perfectly consistent across every joint, so images stay unified whether you’re building a 2-meter accent wall or a 10-meter command center display.
Available from P1.25mm to P4mm pixel pitch, these modules stack into 4K or fully custom resolutions, with brightness up to 600 cd/m² and a 160° super-wide viewing angle that keeps color and clarity consistent from any seat in the room. High-brightness, high-grayscale technology means image quality holds up even when the display is dimmed for meeting rooms or evening events.
Installation is built for speed: modular mounting lets two people complete a setup in as little as 3 hours, and a front-maintenance design means a module swap takes 2 seconds – no need to access the wall from behind. Every unit ships after passing Quanstar’s four-stage quality process, right down to a 12-hour aging test before it leaves the factory.
From studios and control rooms to conference centers and retail interiors, Quanstar’s Indoor LED Display turns any wall into a display built to perform, not just to impress.
Ultra-High Resolution Stacking
Build Any Size, Keep the Same Clarity
Each Quanstar LED module carries a native 128×128 resolution. Stack and combine modules and display scales to 4K – or any custom resolution your space demands – without losing sharpness or consistency across the join lines.
160° Super-Wide Viewing Angle
Every Seat Gets the Same View
Whether the audience is front row, side stage, or standing at the back of the room, Quanstar’s indoor modules hold color accuracy and brightness evenly across a 160° viewing cone – so there are no dead zones and no compromised seats.

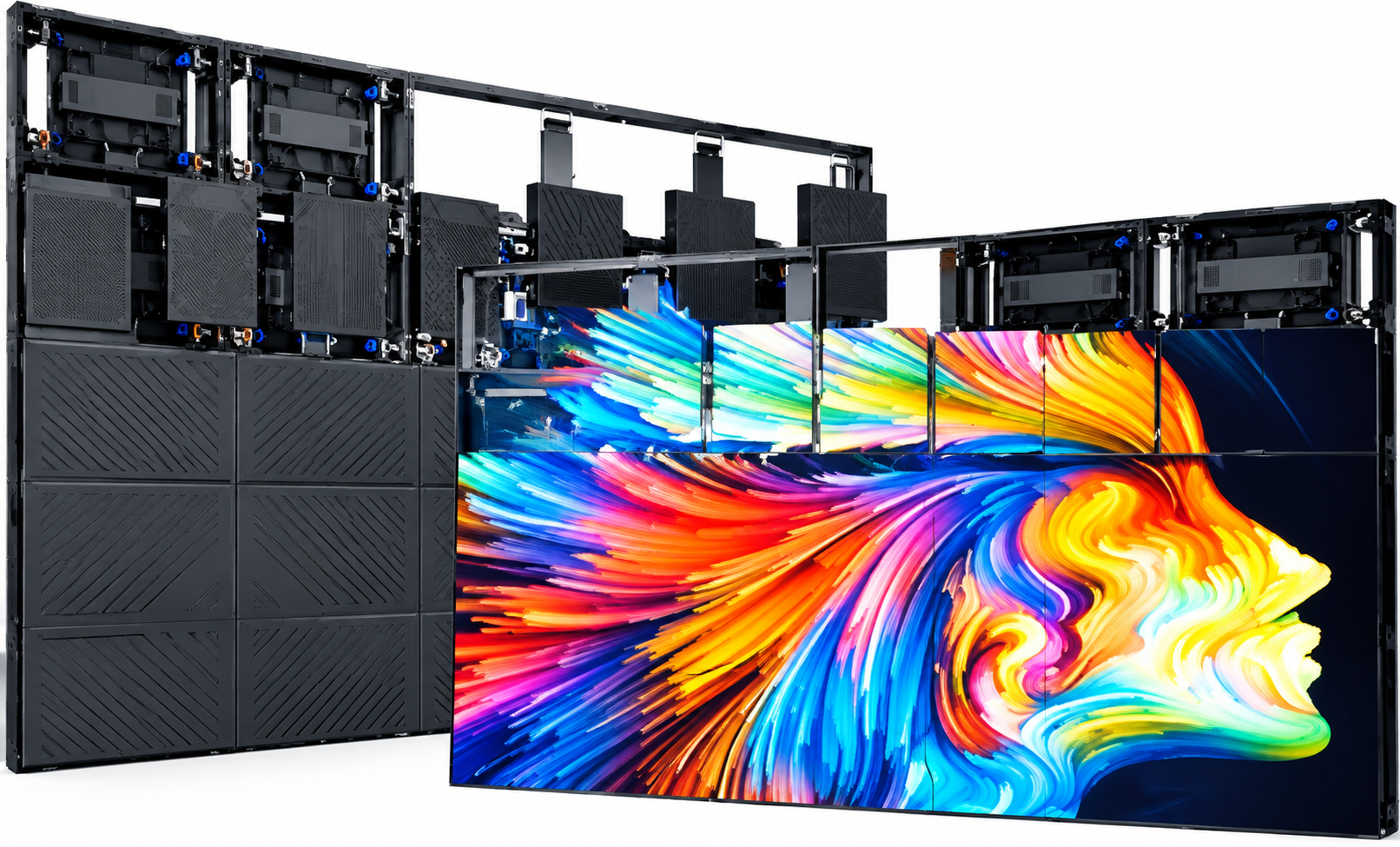

Fast Installation, Faster Maintenance
Two People, Three Hours, Done
Modular mounting means a full indoor LED wall installation can be completed by two technicians in as little as 3 hours. If a module ever needs replacing, the front-access design gets it swapped in 2 seconds – no dismantling the wall required.
Additional information
| Pixel Pitch | 1.25mm, 1.53mm, 1.86mm, 2mm, 2.5mm, 3.076mm, 4mm |
|---|---|
| Module Resolution | 258×128 px (P1.25), 208×104 px (P1.53), 172×86 px (P1.86), 160×80 px (P2), 128×64 px (P2.5), 104×52 px (P3.076), 80×40 px (P4) |
| Module Size | 320 × 160 mm |
| Lamp Type (SMD) | 1010 (P1.25), 1212 (P1.53), 1515 (P1.86 and P2), 2121 (P2.5, P3.076 and P4) |
| Module Weight | 0.41 – 0.5 kg per piece |
| Cabinet Weight | 25 kg per piece |
| Maintenance | Front maintenance |
| Waterproofing Class | IP55 |
| Brightness | ≥600 cd/m² |
| Viewing Angle | ≥160° horizontal / ≥100° vertical |
| Colour Temperature | 11000 – 14000 K |
| Visible Distance | ≥1 m (P1.25 and P1.53), ≥2 m (P1.86 and P2), ≥2.5 m (P2.5), ≥3 m (P3.076), ≥4 m (P4) |
| Operating Voltage | 4.5 V |
| Interface | HUB75 |
| Refresh Rate | 1920 / 3840 / 7680 Hz |
| Grey Level | 12 – 14 bit |
| Max Power | ≤1000 W/m² |
| Average Power | ≤300 W/m² |
| Humidity | 10 – 90% RH |
| Operating Temperature | -20°C ~ +50°C |
| Life Span | 100,000 hours |
